Thiết bị thử nghiệm đồng hồ cố định
Created with Pixso.

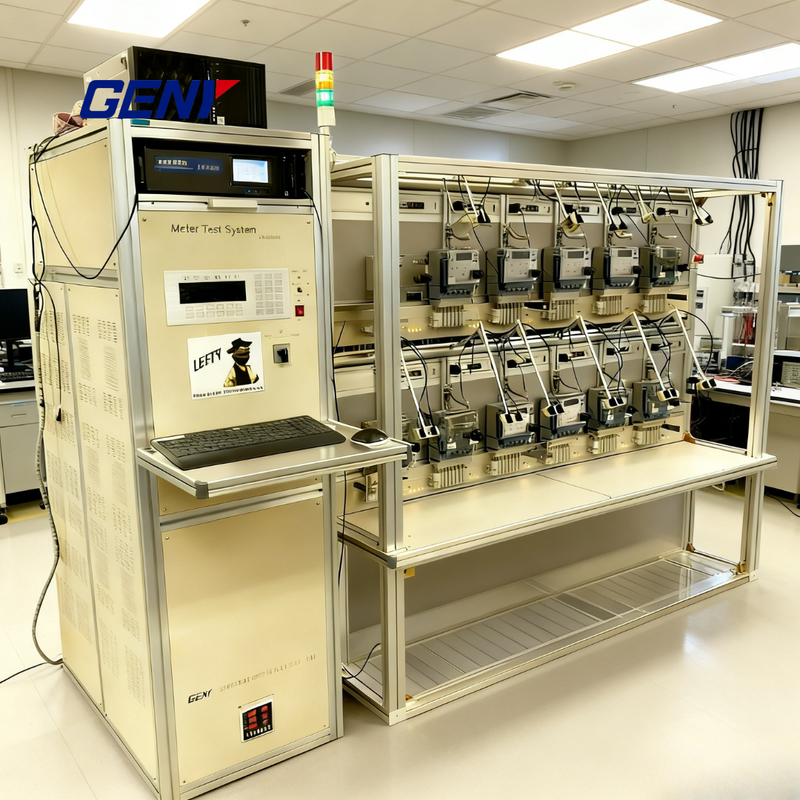

Automatic 24-Position High-Precision Three Phase Smart Meter Testing Equipment

Automatic 24-Position High-Precision Three Phase Smart Meter Testing Equipment

Tên thương hiệu: GENY
Số mẫu: YC-1893D
MOQ: 1 CÁI
giá bán: Có thể đàm phán
Điều khoản thanh toán: L/C,T/T,D/P
Khả năng cung cấp: 100/năm
Thông tin chi tiết
Nguồn gốc:
Trung Quốc
Chứng nhận:
ISO, CE
Đầu ra năng lượng hiện tại:
2800VA (tối đa)
Công suất điện áp đầu ra:
2000VA (tối đa)
Phạm vi điều chỉnh tần số:
45Hz ... 65Hz
Dòng điện liên tục:
100a
chi tiết đóng gói:
Vỏ gỗ dán
Khả năng cung cấp:
100/năm
Làm nổi bật:

automatic three phase smart meter tester

,

high-precision meter testing equipment

,

24-position stationary meter test equipment

Mô tả sản phẩm
Automatic 24-Position High-Precision Three Phase Smart Meter Testing Equipment
Key Features
  • Compatible with 3P4W, 3P3W, and 1P2W meters for versatile testing
  • Automatic, semi-automatic, or manual operation modes
  • Simultaneous testing of multiple meters with different constants
  • Automatic rotor mark positioning for higher efficiency
  • Supports active power, reactive power, and cross-connected reactive power tests
  • Neutral current test, starting test, and creeping test (optional)
  • Optional ICT installation for testing three-phase meters with closed I-P links
  • Overload, short-circuit, and open-circuit protection for safety
  • Lightweight aluminum alloy body—strong, durable, and corrosion-resistant
  • User-friendly Windows software for error test, harmonic test, and influence test
Mechanical Structure
Whole Structure

The rack and power source part is a whole set, not only the electric part is a whole connection, but also the structure is connected together.

Automatic 24-Position High-Precision Three Phase Smart Meter Testing Equipment 0
Fig.3-1 Whole structure test bench
Separate Structure

The rack and power source part is separate. Power source part is in a standard cabinet, it is only has electric connection with rack, if without connector (cable plug or connection port), they are two separate part.

Automatic 24-Position High-Precision Three Phase Smart Meter Testing Equipment 1
Fig.3-2 Separate structure test bench

A test bench has 1 or 2 rack; it is depend on the quantity of MUT or customer's requirement. The rack include single side or both side rack, single line or double line rack. Following is the structure of equipment (introduce as example as separate structure test bench)

Automatic 24-Position High-Precision Three Phase Smart Meter Testing Equipment 2
Fig.3-3 Inner structure of separate structure test bench
Automatic 24-Position High-Precision Three Phase Smart Meter Testing Equipment 3
Fig.3-4 Rack
