BLE-IR Optical Probe

BLE-IR Optical Probe

Tên thương hiệu: GENY
Số mẫu: Bluetooth 5.3 BLE / Type-C
MOQ: 1
giá bán: negotiate rates
Điều khoản thanh toán: T/T, L/C, D/P, T/T.
Khả năng cung cấp: 10 cái/ 1 tháng
Thông tin chi tiết
Nguồn gốc:
Trung Quốc
Chứng nhận:
ISO, CE
Giao diện truyền thông:
Bluetooth 5.3 BLE / Type-C
Tính năng pin:
3.7V / 130mAh
chi tiết đóng gói:
Vỏ gỗ dán
Khả năng cung cấp:
10 cái/ 1 tháng
Làm nổi bật:

BLE-IR optical probe meter accessory

,

infrared optical probe for testing

,

optical probe with BLE connectivity

Mô tả sản phẩm
BLE-IR Optical Probe
Technical Specifications
Items Features
Communication Interface Bluetooth 5.3 BLE / Type-C
Transparent Communication Mode IEC 62056-21 Mode C / Mode E / User Mode ANSI C12.18 / ANSI C12.18-2006 type2
Smart Communication Mode IEC 62056-21 Mode C / Mode E
Battery Feature 3.7V / 130mAh
Battery Charging Time 2 Hours-TypeC (Supported PD Fast Charge, 30m ≥ 80%)
Duration of communication ~ 10 hours
Standby Time ~ 60 days
Maximum B.R. 115200
Sensor Light Wave Length ~ 940 nm
USB2.0 to Type-C Cable length 1M in normal and 1.5M/2M/3M for option
Fastening Strong magnetic adhesion (Exceeding IEC62056-21 standard, tensile force ≥ 10N)
Magnet material N45 / N52 (Optional)
Mechanical Impact PBT+GF housing
Diameter & Height Optical port 32mm Diameter / H23mm
Weight 35 gr
Enclosure Material PBT+GF
Protection Class IP 51

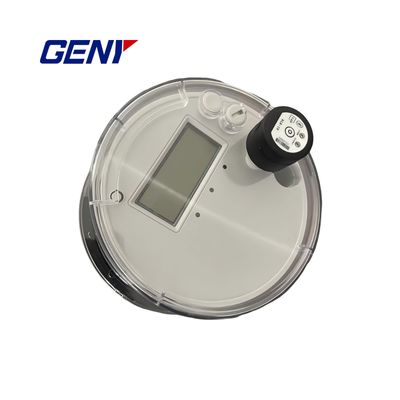

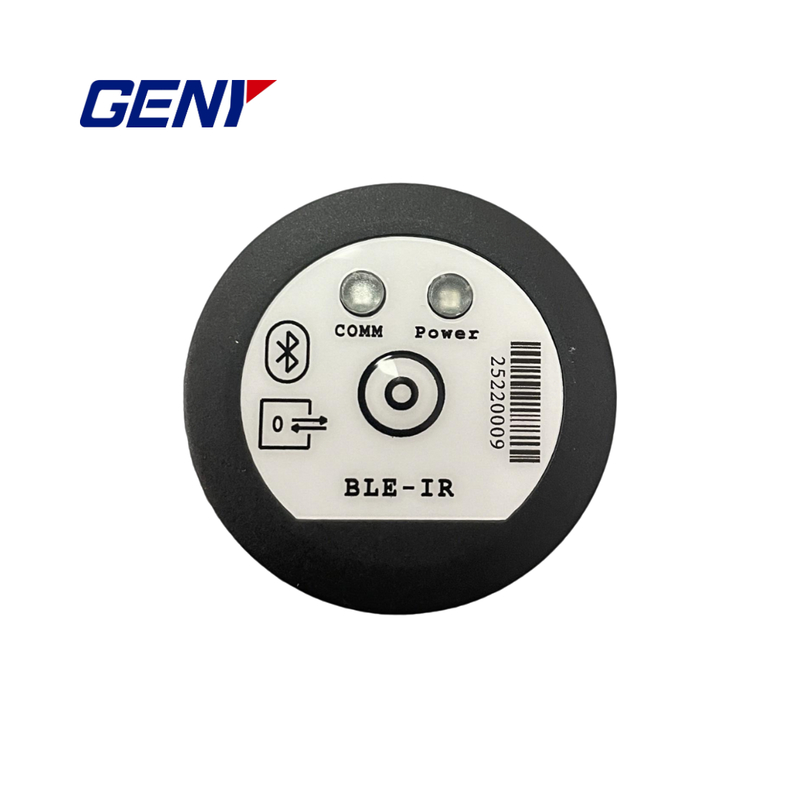

BLE-IR Optical Probe 0 BLE-IR Optical Probe 1 BLE-IR Optical Probe 2
